Features And Functions
-The machine has the laser cutting proprietary energy control functions, machine operator functions, laser operation function, and expert cutting technology library, remote diagnostics and other functions.
-Anti-collision system to protect the laser head from being damaged when power is suddenly off or wrong operation.
-Auto compensation system for rotary laser to adjust the tolerance when the rotary die board is tiny twisted.
-The machine equipped with CAD/CAM dedicated automatic programming software, which is to facilitate the production of graphics, programming and maximize the conservation of raw materials, and special cutting process features.
-The machine uses upper and lower regional dust removal system at the same time. Cutting waste funnel fall into the scrap car, which is convenient for operator to clean regularly.
-The machine uses fully-enclosed cover, the effect of removing smoke is very good,100% no smoke left in the workshop when cuting.
D-The machine with enclosed optical path, use positive pressure to remove the dust, which can ensure the lens life.
-Stainless steel plate cover, can bear at least two weighted 80kg men standing on it, no deformation.

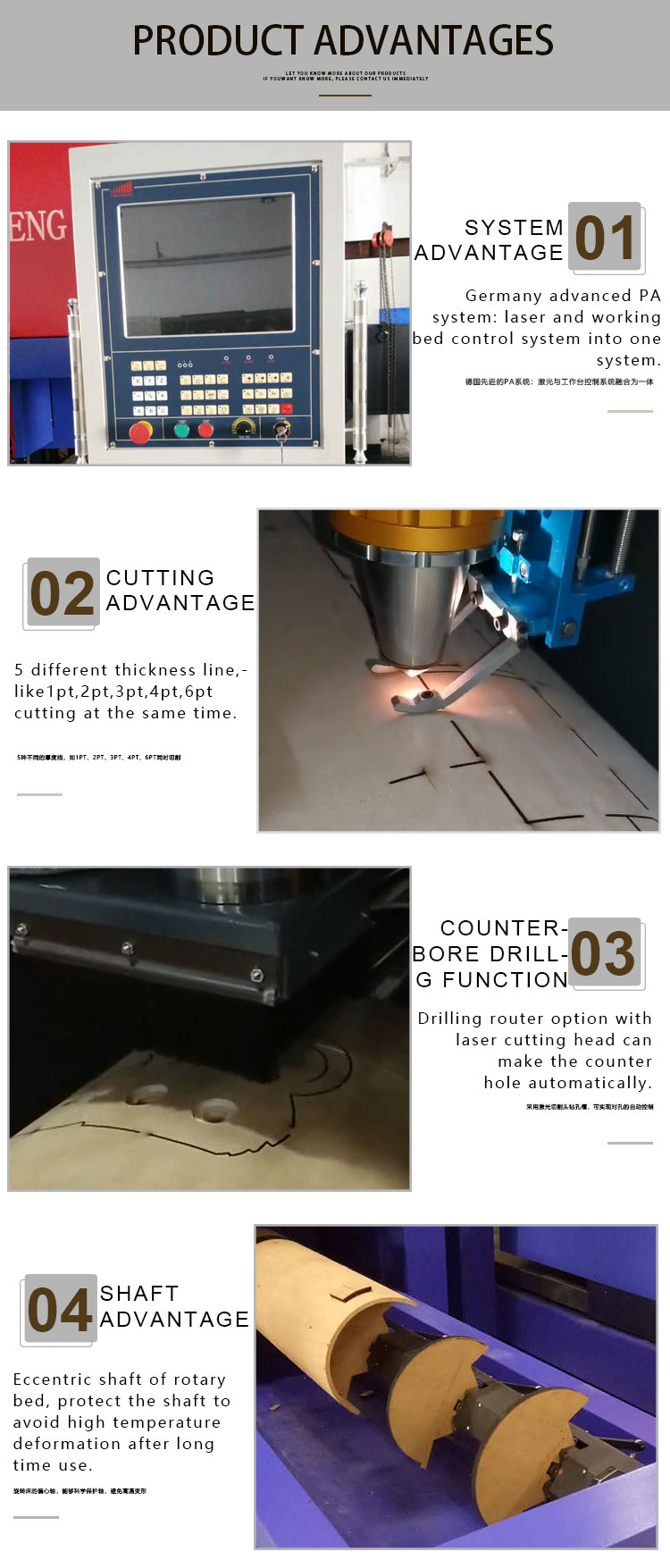

-Eccentric shaft of rotary bed, scientific protection of the axis to avoid high temperature deformation.
-Drilling router function is optional.
-Counterbore driling function: automatically drill the counterbore.

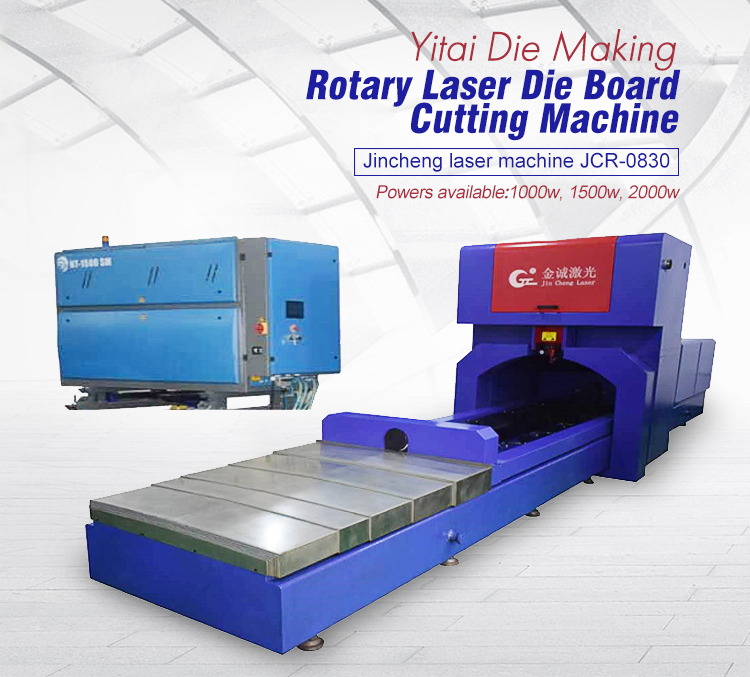

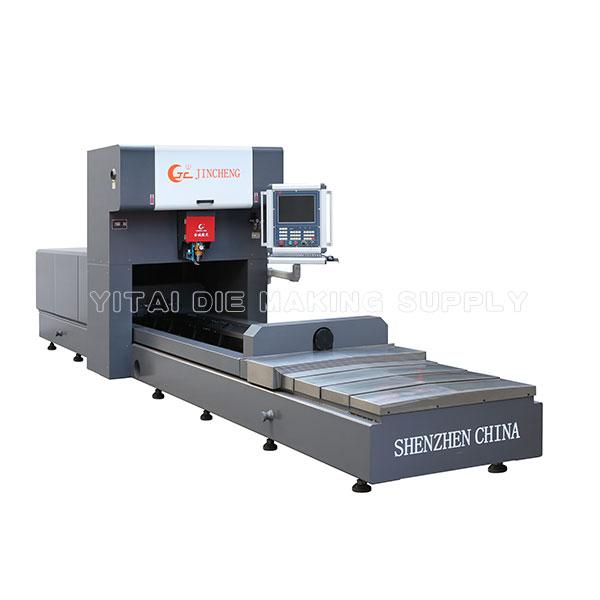

Model No. |
JCR-0803-1000w-2000w |
|||
Power |
1000W |
1500W |
2000W |
|
The table moving |
Gantry construction |
|||
Laser output power |
High power axial flow CO2 laser source |
|||
The maximum cutting board size |
170~800*3000mm |
|||
Cutting speed |
45-65m/h |
55-80m/h |
90-120m/h |
|
Re-Positioning Precision |
≤0.02mm |
|||
Controlling system |
Germany PA |
|||
Cutting width kerf |
0.45mm, 0.71mm, 1.05/1.07mm at one time (die board) |
|||
Transmission system |
Ball screw & Linear guide (TAIWAN) |
|||
Driving system |
Japan high-precision servo motors |
|||

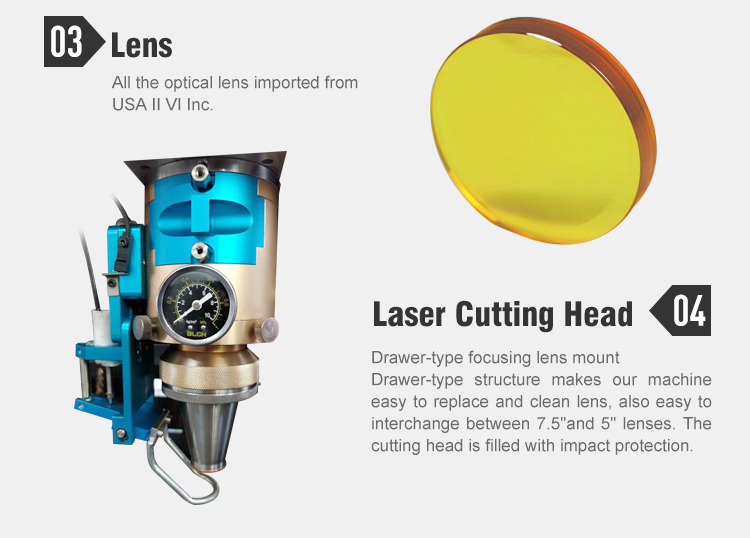

Optical system |
US |
|||
Moving structure |
Gantry |
|||

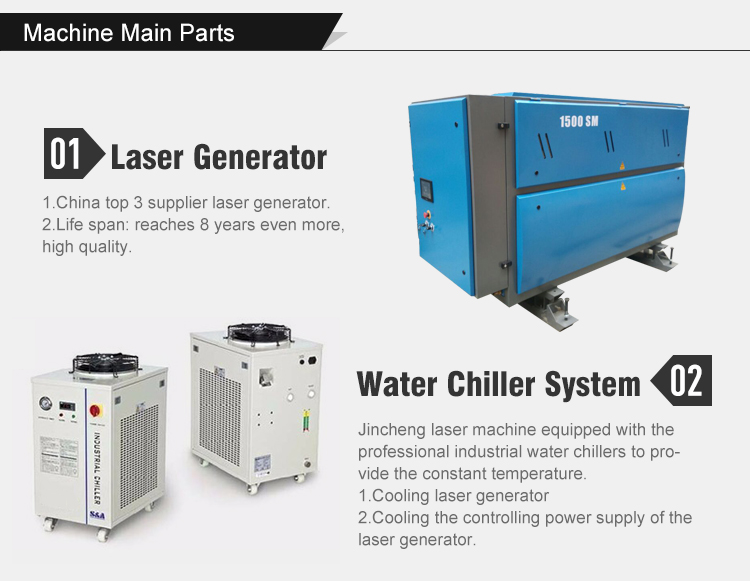

Chiller system |
Made in China |
|||
Size |
7500*1500*1800mm |
|||
G. Weight |
4200kg |
|||
Laser generator gas matched |
He ,N2 ,CO2(99.999%) |
|||
Laser cutting thickness |
0.1-30mm |
|||
Centrifugal blower |
1 set |
